Home>Product>PLV

P-P8U-DC400S-K1ESV3R

The PLV module is a line scanning imaging integrated module that can capture ultra high speed (160Km/h) moving objects.

Equipped with a high-speed line scanning camera, the imaging accuracy can reach 0.6mm per pixel. Shooting distance from 500mm to 5000mm and beyond. It is connected to the user's PC through a gigabit network and transmits data in real-time. Users can use image recognition technology to achieve defect detection.

Moreover, it adopts an integrated shell, which can achieve IP67 level protection and has electromagnetic compatibility characteristics, suitable for various complex and harsh working environments.
Download Spec

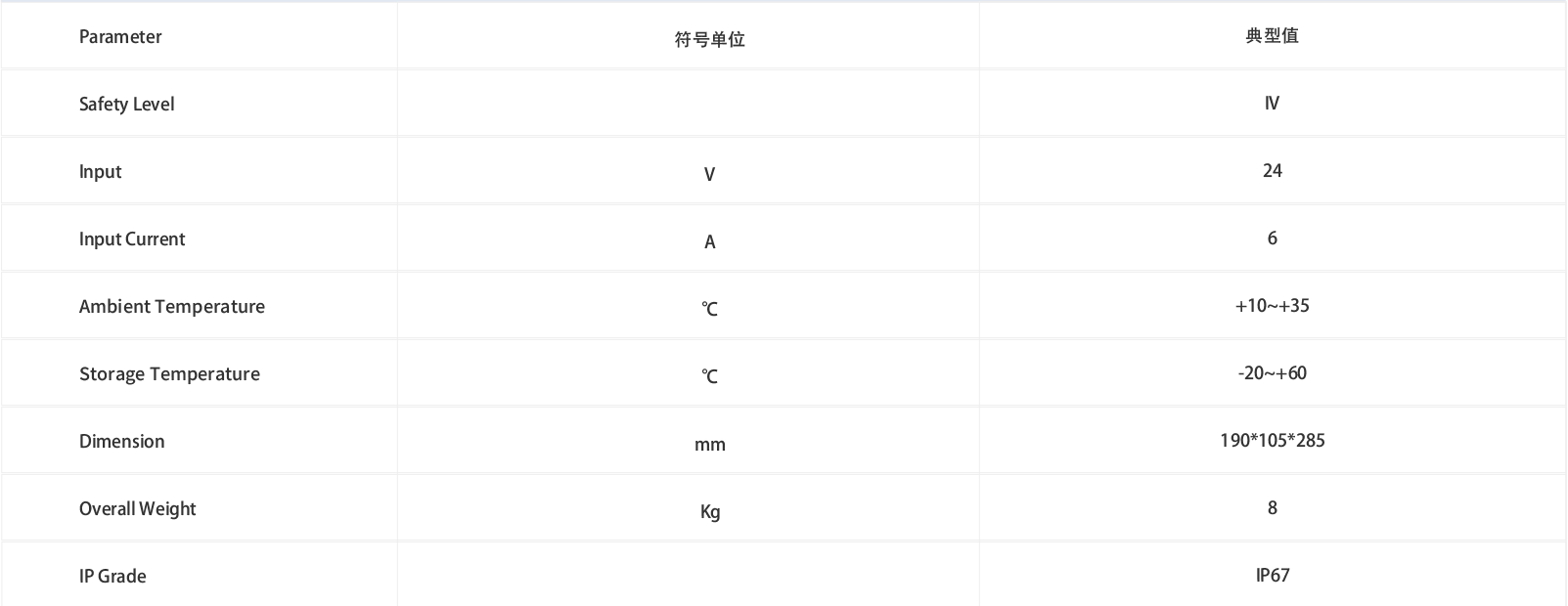

Main Parameters

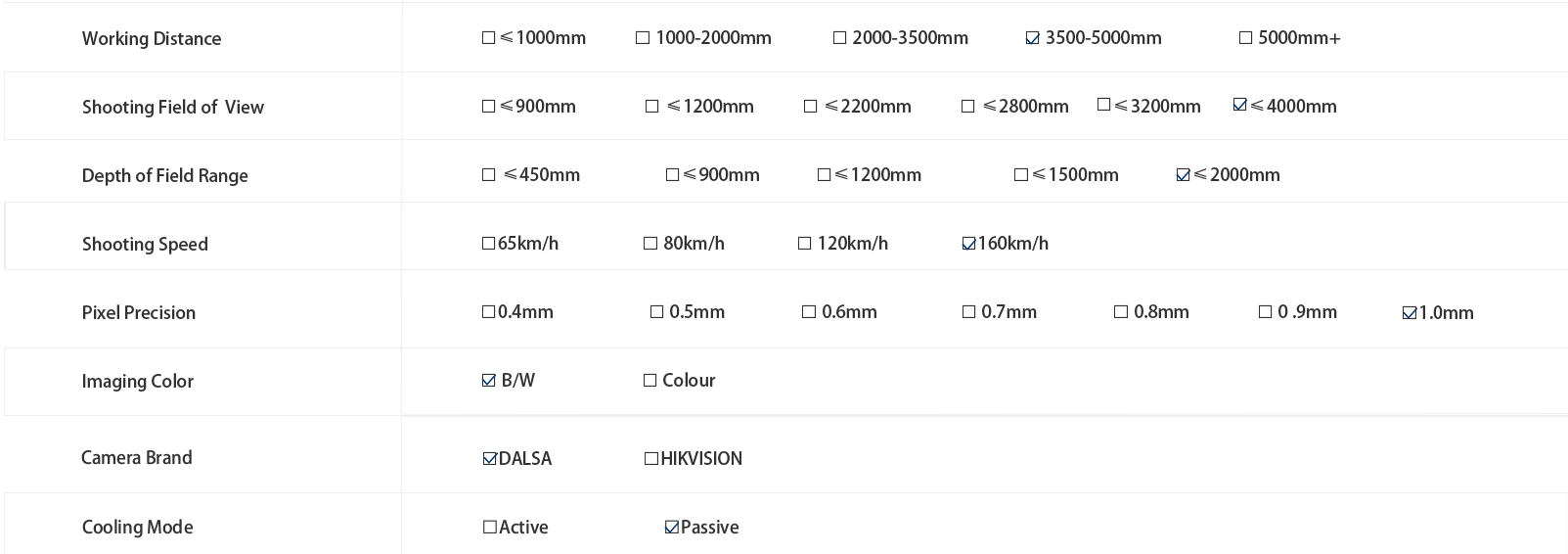

Other Parameters
Application Display
Dimensions（mm）
Caution
Please keep the laser emission port unobstructed and avoid eye exposure to the laser directly.
Please do not plug or unplug laser power plug with electricity to prevent laser breakdown.
Please contact the manufacturer promptly in case of any malfunction.Do not disassemble it to avoid damaging internal precision components.
